General information

Enclosures made of glass-fiber reinforced polyester have been used a thousand times in even the harshest of environments as terminal boxes. Aggressive chemicals and / or mechanical stress can not damage these rugged enclosures. Silicone seals in the lid close cleanly and permanently without much deformation.Integral 4.5mm clearance holes moulded into the body serve to attach the DIN rail on which the terminals to be set. Captive screws in the lid increase the utility. By a carbonloaded surface with a low surface resistance is astatic charge not possible.

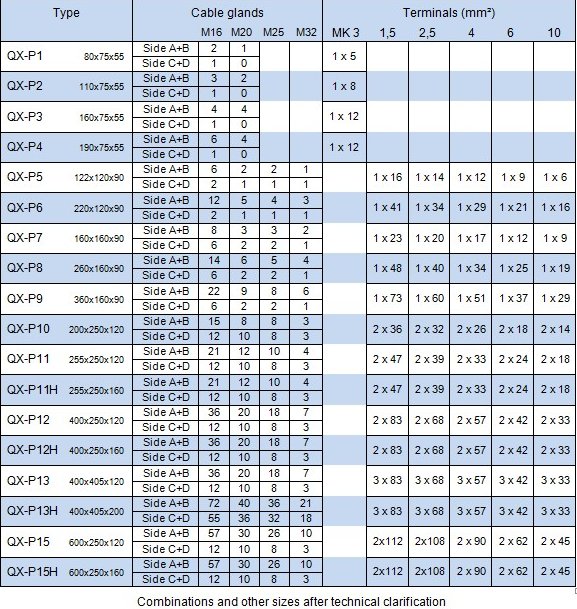

Size and quantity of terminals are allowed to change by the end user in accordance to data tables(see data sheets)

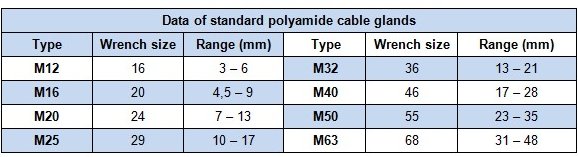

cable diameter range for cable glands :
