General information

Stainless steel enclosures (316 L, VA 1.4404) have proven themselves in the most difficult environments and in hygienic areas as distribution or terminal boxes and for local control stations. These enclosures be required by operators more and more often. Aggressive chemical substances and / or mechanical stresses can not harm these robust cabinets. Silicone seals (Tmin = -50 ° C) in the lid close permanently without deformation. To ease the assembling with cable glands optional flange plates may be used on the sides. An optionally available mounting plate makes mounting with terminals very easy.

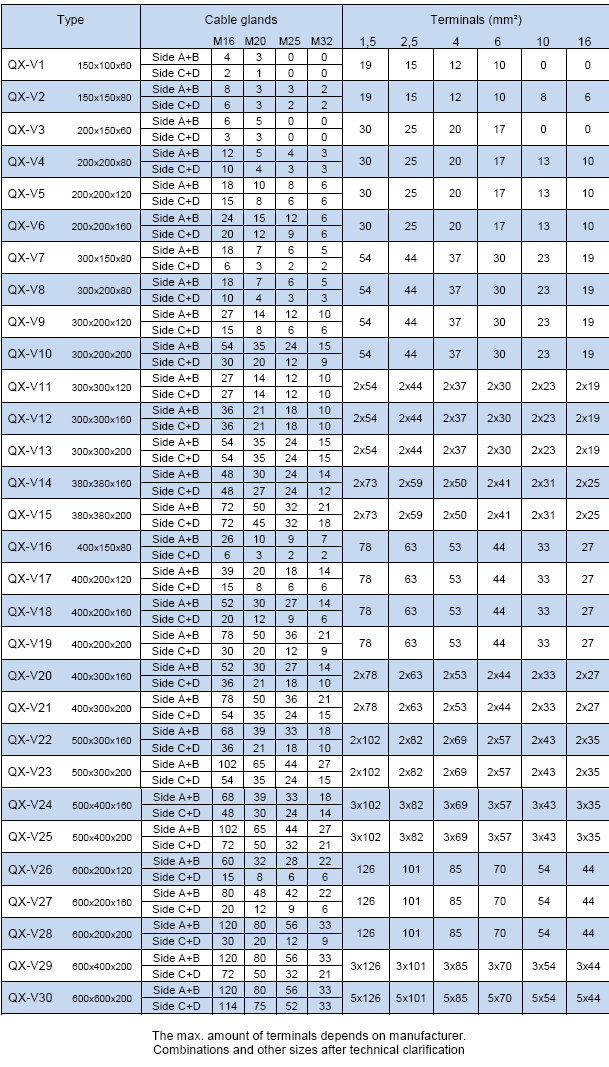

Size and quantity of terminals are allowed to change by the end user in accordance to data tables(see data sheets)

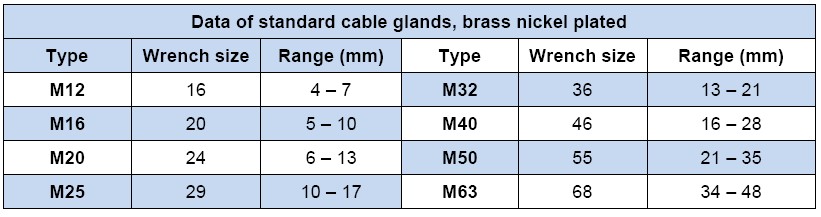

cable diameter range for cable glands :
.
