  Description

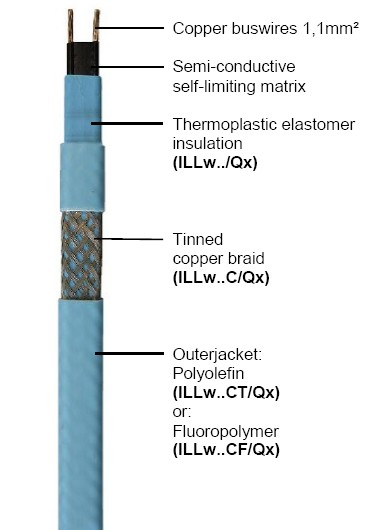

  Quintherm ILLw is a light industrial/commercial grade self- regulating heating tape that can be used for freeze protection or temperature maintenance of pipework and vessels in the construction and refrigeration industries. It can be cut-to-length at site and exact piping lengths can be matched without any complicated design considerations. ILLw is approved for use in non-hazardous, hazardous and corrosive environments to world-wide standards. Its self-regulating characteristics improve safety and reliability. ILLw will not overheat or burnout, even when overlapped upon itself. Its power output is self-regulated in response to the pipe temperature. The installation of Quintherm ILLw is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

  Technical Data ILLw

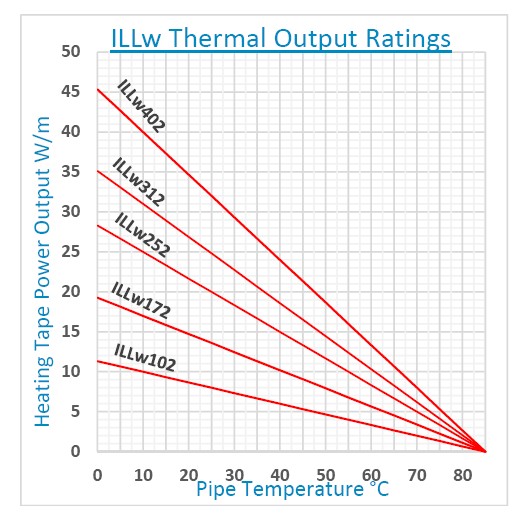

  • Power output 10,17, 23, 31, 40(ILLw) W/m at 10°C
  • Outer sheath Polyolefin or Fluorpolymer
  • Maximum operating temperature switched on 85°C (185°F)
  • Maximum temperature switched off  85°C (185°F)
  • Minimum installation temperature  –40°C (–40°F)
  • Temperature class T6(up to 31W/m); T4(40W/m)
  • Voltages110 – 120VAC, 220 – 277VAC
  • Special voltage 24V, 12V
  • Maximum braiding resistance  <18,2 Ω/km
