  Description

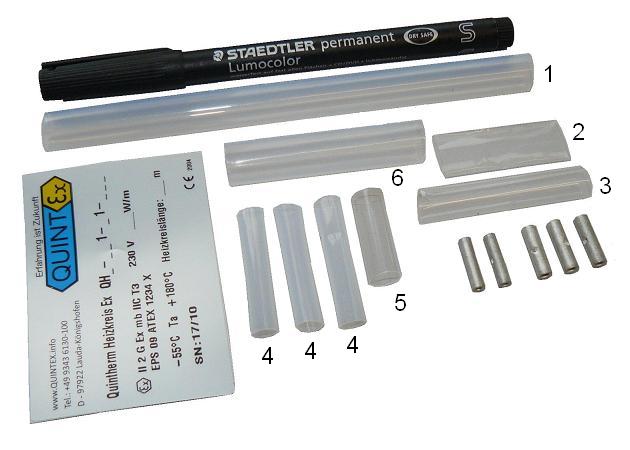

  The IAL3Ex HQSS contains a very flexible and space saving termination set and is used in hazardous areas. The usage of a special temperature resistant FEP-Connection cable grants different application possibilities at very high temperatures. This set is composed of connection and end seal parts. These are also separately available.The application is covered by the heating circuit approval. This is why the EC declaration is based on the assembled  heating circuit. see 'Manual of heating circuit QM/QH'



  Technical data IAL3ExHQSS

  • Max. ambient temperature:          180°C
  • For heating tapes type:                 ILH..CF, ILS..NF
  • Cross section of power cable:    1,5mm²
  • Length connector:                          140mm
  • Length end seal:                             55mm
