  Description

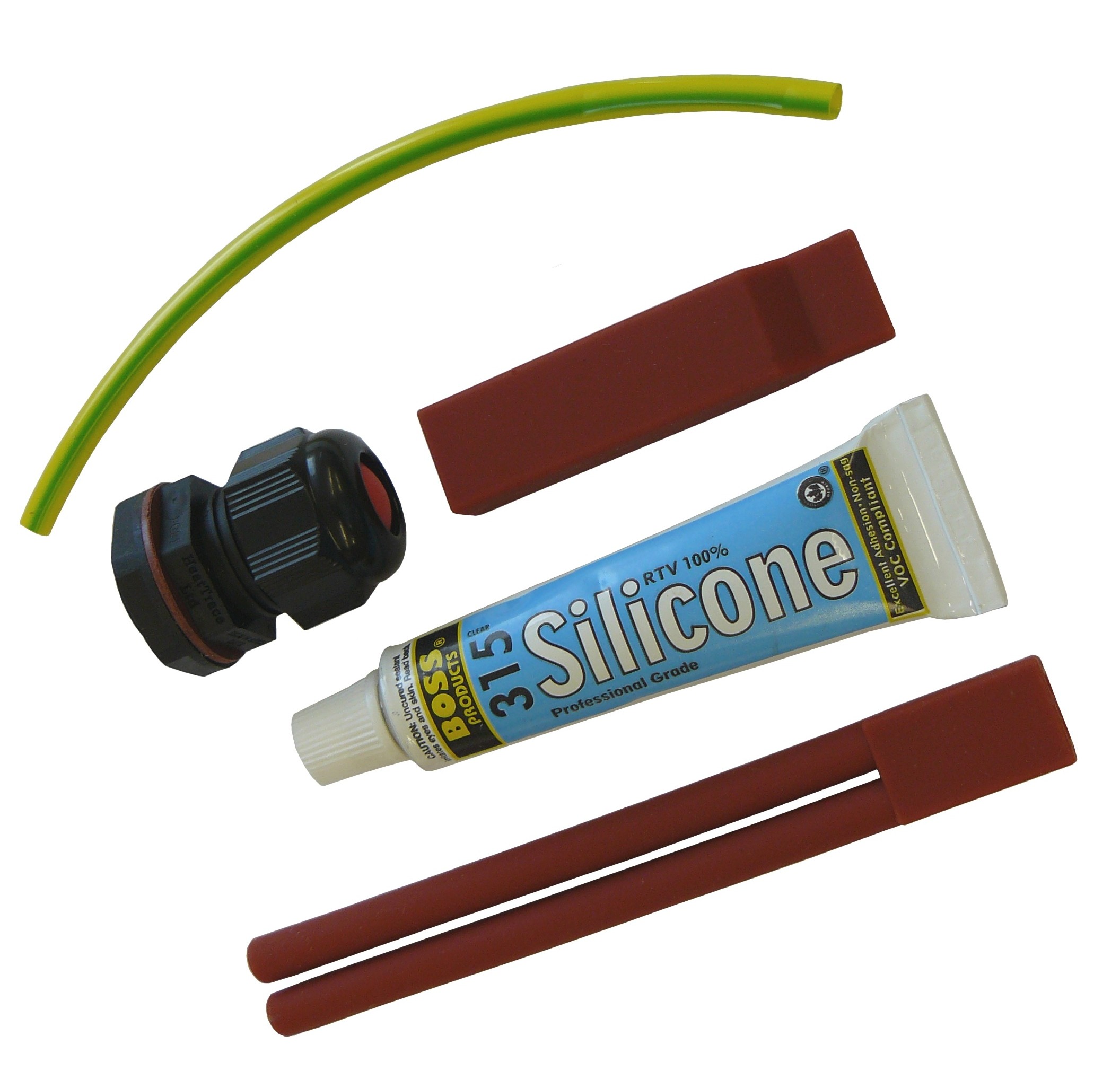

  The termination kits of the IAL4-series are silicon-made termination parts which contains power supply, end seal, a special cable gland and various accessories. These termination kits can be used to connect the heating circuit directly in an Exe approved junction box e.g. AG.. Ex or thermostat enclosure IRM..Ex. There is no separate supply cable needed. Because of the high temperature resistance up to 200 °C, heating cable types ILL.. are suitable as well as mid- & high temperature heating cable types ILM, IPMM, IPL, IPH, ILH and ILS.



  Technical data IAL4SS/BS

  • Max. ambient temperature:          200°C
  • For heating tapes type (SS):        ILL,IPM
  • For heating tapes type(BS):         ILLw,ILM,ILH,ILS
  • Length connector (SS):                160mm
  • Length connector (BS):                165mm
  • Length end seal:                           50mm
