  Description

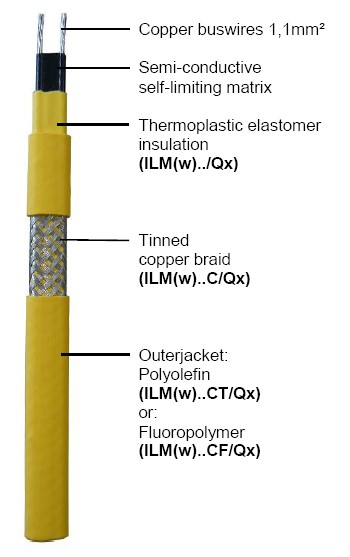

  Quintherm ILM(w) is an industrial grade self-regulating heating tape that can be used for freeze protection or temperature maintenance of pipework and vessels up to 100°C. It can be cut to length on site and exact piping lengths can be matched without any complicated design considerations.ILM(w) is approved for use in non-hazardous and hazardous areas and corrosive environments according to world wide standards. Its self-regulating characteristics improve safety and reliability. ILM will not overheat or burnout, even when overlapped upon itself. It´s power output is self-regulated in response to the pipe temperature. The installation of Quintherm ILM(w) is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

  Technical data ILM(w)

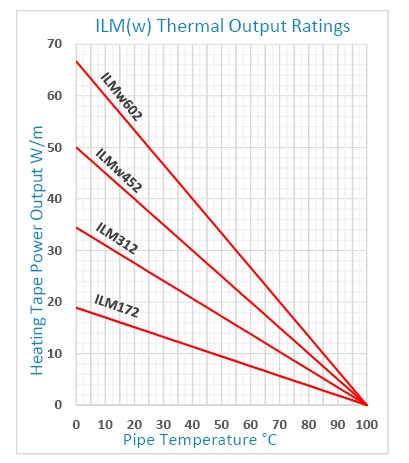

  • Power output: 17, 31, 45, 60 W/m bei 10°C
  • Outer sheath:  Polyolefin or Fluorpolymer
  • Maximum temperature switched on: 100°C (212°F)
  • Maximum temperature switched off:  100°C (212°F)
  • Minimum installation temperature  –40°C (–40°F)
  • Temperature class  T4
  • Voltage 110 – 120VAC, 220 – 277VAC
  • Maximum braiding resistance<18,2 Ω/km
