  Description

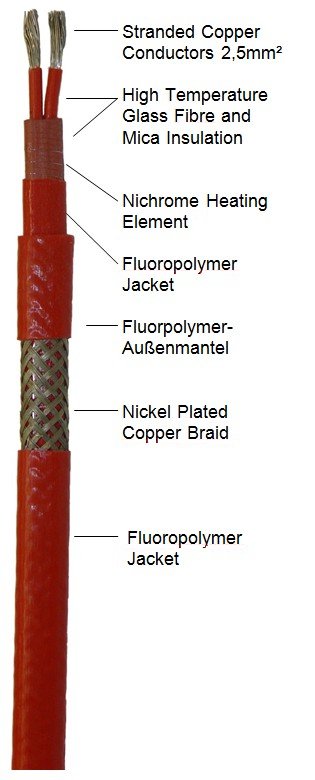

  Quintherm IPH is a constant wattage heating tape that can be used for freeze protection or maintenance of process temperatures in pipework and vessels. It can be cut-to-length at site and can replace mineral insulated cables for applications where the cut-to-length feature or field fabricated heating cable is preferred. Quintherm IPH is approved for use in hazardous, safe and corrosive environments. Because of the special construction with heating zones no additional cold lead is required. From cut point to the next heating wire bonding point the heating cable remains cold and serves as a cold lead. The installation of IPH heating tape is quick and simple and requires few special skills and tools. Termination and power connection components are provided in convenient kits.

  Technical data IPH

  • Power output: 10, 30, 50, 70 W/m temperaturunabhängig
  • Outer sheath:   Fluorpolymer

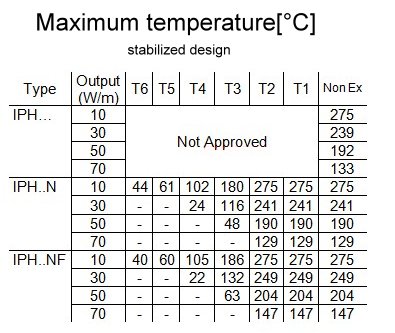

  • Maximum temperature switched on:  s. Tabelle
  • Maximum temperature switched off:  285°C
  • Minimum installation temperature:  –40°C (–40°F)
  • Voltage:   220– 240VAC (other voltages see data sheet)
  • Maximum braiding resistance:  <18,2 Ω/km
