  Description

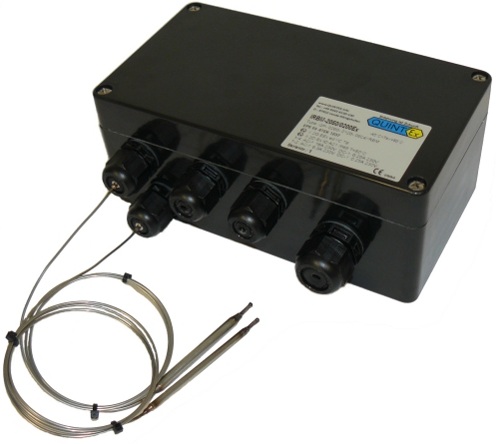

  The Ex-Controller-/Limiter devices of the IRB2M-Series are a combination of mechanical 2-point capillary temperature controller/limiter. The black glasfibre-reinforced polyester enclosure as well as the stainless steel enclosure is very rugged and is used as a junction box for single core heating cables also. The combination of controller and limiter allows an easy and space-saving application for electrical trace heating in hazardous areas for controlled design in accordance to 60079-30. The sensors with 4mm outer-diameter are particularly suitable for mounting on pipelines or containers.

  Technical data IRB2M_EX (Controller/Limiter)

  • Min. ambient temperature: -40°C (-55°C on request)
  • Switching capacity NC: 25A/230V (16A/400V on request)
  • Temperature class: T6 at +50°C
  • Temperature range thermostat/limiter: -20..50/70..190°C|0..120/130..190°C|0..190/130..190°C|0..120/70..190°C|0..190/70..190°C|60..300/150..300°C
  • Other temperature range on request
