  Allgemeines

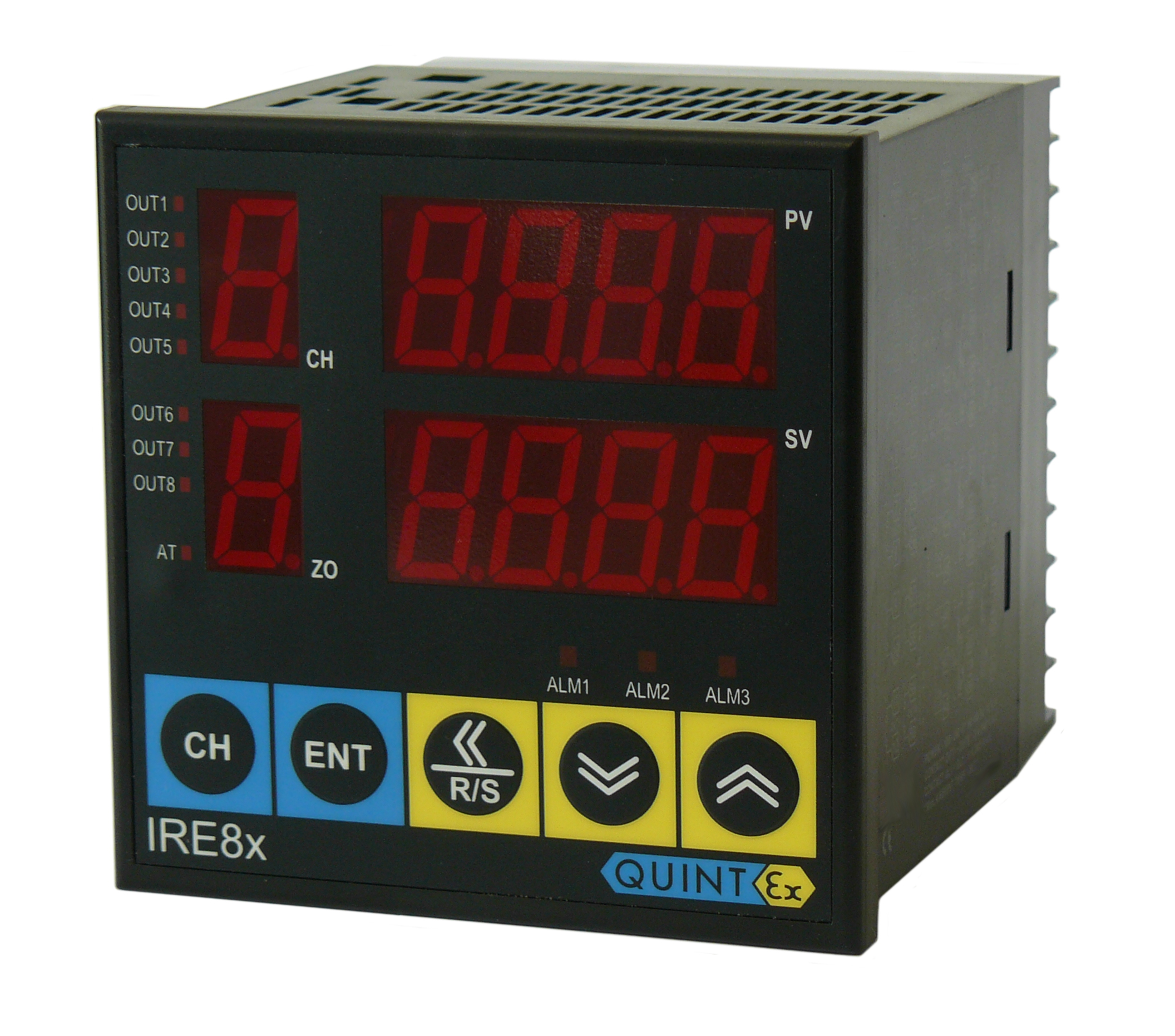

  The Quintex IRE8x is a simple to operate Electronic Multi-Function Temperature Controller with various adjustment possibilities for usage in mid- and small-sized plants. The Controller is available in 4/8 Channel Version. Control-Parameter can be automatically determined and set by Auto-Tuning. For monitoring you can set 3 different Alarm Outputs. There are a lot of variants for Sensors, Outputs and monitoring possibilities available. The Controller will be delivered with pre-set for freeze-protection.

  Technische Daten IRE8

  • Voltage: 100-240VAC, 50-60Hz (Option 24VDC)
  • Channels: 4 oder 8
  • Switching capacity: Relay: 250V / 3A or SSR (Solid-State-Relay) with Pulse Output 0/12V, Load over 600Ω
  • Cycle time: 1s
  • Alarm output: 3x Relays (max. 250V / 1A)
  • Alarm functions: 15 Types
  • Temperature range: -199…+600°C (bei PT100)
  • Operation temperature: 0..+50°C
  • Dimension (LxWxD): 96x96x100mm
